T53W vs T54W — should I get the bigger screen?

If the user looks at the phone often (executive desk, busy reception), yes — $30 more for the 4.3-inch screen and four extra SIP lines. For typical office desks, the T53W is fine.

Is the Wi-Fi really Wi-Fi 6?

Yes — 802.11ax dual-band. Works on Wi-Fi 5 / Wi-Fi 4 networks at lower speeds; uses Wi-Fi 6 features (OFDMA, TWT) where available.

Does Bluetooth call control work with my headset?

Standard HSP/HFP profiles. Jabra Evolve series, Plantronics Voyager, Yealink WH62/66 all work for answer/end.

Will it work on PoE with Wi-Fi active?

Yes — class 2 (under 7 W). The radios add some draw but PoE handles it.

Yealink · T5 series · 12-line + Wi-Fi 6 + BT

Yealink T53WTwelve lines with built-in Wi-Fi 6 and Bluetooth.

Twelve SIP accounts, a 3.7-inch 360×160 color screen, dual gigabit ethernet with PoE, integrated dual-band Wi-Fi 6 and Bluetooth 4.2, dual USB ports. The T53W is the T53 with wireless built in — the default mid-tier T5 phone we recommend for any desk that might benefit from wireless flexibility.

Display

3.7″ color · 360×160

SIP accounts

12 lines

Connectivity

Wi-Fi 6 + BT 4.2

Ethernet

Dual gigabit · PoE class 2

Audio

HD voice · dual USB · EHS

Power

PoE or 5V/2A adapter

$209 one-time

or rent for $17.99/mo — month-to-month, return anytime

Ships pre-configured · free next-business-day for orders $200+

Order a T53W Rent for $17.99/mo Datasheet (PDF) ↓

✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

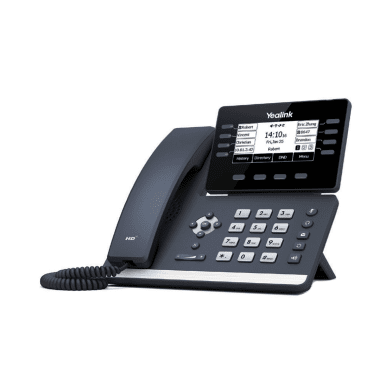

Yealink T53W voip desk phone — front view with handset and display — Yealink T53W

Why the T53W is on the catalog.

The T53W is the wireless-included version of the T53, and the phone we sell more often than its wired sibling. Built-in dual-band Wi-Fi 6 (802.11ax) and Bluetooth 4.2 mean you can deploy the phone over Wi-Fi where ethernet is inconvenient, and pair Bluetooth headsets directly without an EHS adapter. The dual USB ports stay free for actual peripherals.

Where it earns the upgrade vs. the T53: any deployment where flexibility matters. Conference rooms, satellite offices, executive desks that might get rearranged, hot-desk pods, retail spaces where ethernet drops cannot be added without ripping up flooring. Wi-Fi 6 (not Wi-Fi 5 like the older T31W) means it works well even on busy multi-AP networks.

Where to step up to T54W: $30 more for a bigger 4.3-inch screen and four more SIP lines (16 vs 12). For executive desks where the screen matters, the T54W is the obvious move. For everywhere else the T53W is the value sweet spot in the T5 family.

Honest weakness vs. the older T4 phones: no Android. The T5 family is Yealink's modern non-Android line. For Android-based functionality (custom apps, mobile-style UI), look at the T58 series.

Full technical specifications.

Display & user interface
Display	3.7-inch 360×160 color TFT LCD
Line keys	21 multi-page line keys with dual-color LEDs
Soft keys	4 context-sensitive soft keys
VoIP & SIP
SIP accounts	Up to 12 SIP accounts
Protocols	SIP v2, TLS, SRTP, BLF/BLA
Codecs	Opus, G.722, G.711, G.729AB, G.726, iLBC
Provisioning	FTP/TFTP/HTTP/HTTPS, PnP, TR-069, RPS
Audio
HD voice	HD handset and HD speakerphone
Speaker	Full-duplex with AEC
Headset	RJ9 + 2 × USB + Bluetooth 4.2 + EHS
Connectivity
Ethernet	Dual 10/100/1000 Mbps gigabit
PoE	IEEE 802.3af Class 2
Wi-Fi	Built-in dual-band Wi-Fi 6 (802.11ax)
Bluetooth	Built-in Bluetooth 4.2
USB	2 × USB 2.0
Power & physical
Power	PoE or 5V/2A adapter
Dimensions	Approximately 225 × 196 × 41 mm
Wall mount	Yes
In the box
Included	T53W handset, base, curl cord, ethernet cable, stand, provisioning card
Not included	Power adapter, USB devices

How it works on voip.army.

Plug the T53W into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

SIP accounts on one phone

12 lines per phone. Each line key has a dual-color LED for status at a glance.

Programmable

Programmable keys

Programmable mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

Per-device onboarding fees

Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

Yealink

Auto-provisioning template

Tested against every Yealink firmware release for T53W. We catch regressions before they reach your fleet.

Need T53Ws for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

Get a quote Start a free trial first

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
