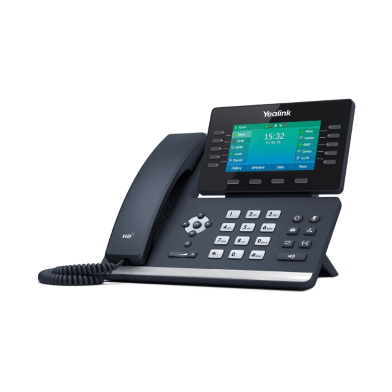

Sixteen SIP accounts, a 4.3-inch 480×272 color screen, dual gigabit ethernet with PoE, integrated dual-band Wi-Fi 6 and Bluetooth 4.2, dual USB ports, EHS support. The T54W is what you buy when you want everything good about the T46U plus built-in wireless.
The T54W is the T5 family's volume-seller and the phone we recommend by default for executive desks across the catalog. It is essentially the T46U — same 4.3-inch landscape color screen, same 16 SIP lines, same dual USB, same EHS — with built-in dual-band Wi-Fi 6 and Bluetooth 4.2 added. For $10 over the T46U, the wireless built in is a meaningful upgrade.
Where it lands in a deployment: this is the executive desk phone that does not need anything else. Wi-Fi for hot-desking or relocation flexibility, Bluetooth for direct wireless headset pairing, dual USB for both a wired headset and a separate USB peripheral, sidecar support via EXP43 for assistant-pool BLF monitoring. Almost every executive use case can be answered with a single T54W SKU.
Where to step up: the T57W is $50 more and adds the 7-inch touchscreen, otherwise identical Wi-Fi/BT spec. For C-suite or boardroom phones where presence matters, the bigger screen is worth it. For everyone else — VPs, directors, managers — the T54W's 4.3-inch screen is the better-priced sweet spot.
Where to step down: the T46U is $10 less and gives up Wi-Fi/BT. For permanently-wired desks where wireless will never be used, the T46U saves you the cost. For any desk with even a small chance of needing Wi-Fi, the T54W's flexibility is worth it.
| Display & user interface | |
| Display | 4.3-inch 480×272 color TFT LCD |
| Line keys | 27 multi-page line keys with dual-color LEDs |
| Soft keys | 4 context-sensitive soft keys |
| Navigation | 5-way nav, dedicated function keys |
| VoIP & SIP | |
| SIP accounts | Up to 16 SIP accounts |
| Protocols | SIP v2 (RFC 3261), TLS, SRTP, BLF/BLA, shared call appearance |
| Codecs | Opus, G.722, G.711, G.729AB, G.726, iLBC |
| Provisioning | FTP/TFTP/HTTP/HTTPS, PnP, TR-069, RPS |
| Security | HTTPS, TLS, SRTP, 802.1X, AES config encryption |
| Audio | |
| HD voice | HD handset and HD speakerphone |
| Speaker | Full-duplex with AEC |
| Headset | RJ9 + 2 × USB + Bluetooth 4.2 + EHS |
| Connectivity | |
| Ethernet | Dual 10/100/1000 Mbps gigabit |
| PoE | IEEE 802.3af Class 2 |
| Wi-Fi | Built-in dual-band Wi-Fi 6 (802.11ax) |
| Bluetooth | Built-in Bluetooth 4.2 |
| USB | 2 × USB 2.0 |
| Expansion | EXP43 sidecar |
| Power & physical | |
| Power | PoE 802.3af, or 5V/2A adapter |
| Dimensions | Approximately 245 × 200 × 41 mm |
| Wall mount | Yes |
| In the box | |
| Included | T54W handset, base, curl cord, ethernet cable, stand, provisioning card |
| Not included | Power adapter (PoE preferred), USB headset, sidecar |
Plug the T54W into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.
Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.
16 lines per phone. Each line key has a dual-color LED for status at a glance.
Programmable mapped from the voip.army portal — BLF, paging, parking, transfer destinations.
Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.
Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.
Tested against every Yealink firmware release for T54W. We catch regressions before they reach your fleet.
Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.
