Yealink · T5 series · 12-line wired

Yealink T53The T5 entry — modern chassis, no wireless.

Twelve SIP accounts, a 3.7-inch 360×160 color screen, dual gigabit ethernet with PoE, dual USB ports, EHS support. The T53 is the T5 series' entry — Yealink's modern next-gen chassis without the built-in Wi-Fi or Bluetooth that defines the rest of the T5 family.

Display
3.7″ color · 360×160
SIP accounts
12 lines
Programmable keys
21 multi-page
Ethernet
Dual gigabit · PoE class 2
Audio
HD voice · dual USB · EHS
Power
PoE or 5V/2A adapter
$179 one-time
or rent for $11.99/mo — month-to-month, return anytime
Ships pre-configured · free next-business-day for orders $200+
✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

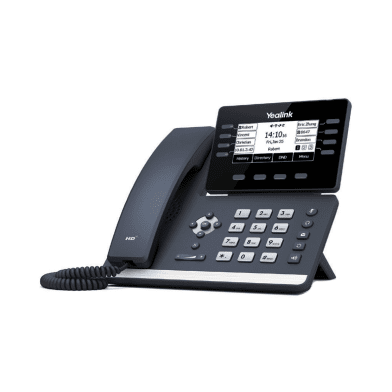

Yealink T53 voip desk phone — front view with handset and display
Yealink T53

Why the T53 is on the catalog.

The T53 is the T5 family's wired-only entry. The T5 series is Yealink's current-design language — slimmer profile, modernized UI, better build materials — and the T53 brings that into a mid-tier 12-line phone without paying for Wi-Fi. It is the right pick for a desk that gets the T5 look and feel without needing wireless connectivity.

Where it lands versus the T42U (the T4-family equivalent): same 12-line cap, same dual USB, same gigabit. The T53's screen is larger and color (3.7-inch vs. the T42U's 2.7-inch mono), and the chassis is slimmer and more modern-looking. $10 more. For new deployments where aesthetics matter, the T53 is the better-looking phone for marginal money.

Where to step up: the T53W is $30 more and adds built-in Wi-Fi 6 and Bluetooth 4.2. For most modern offices that is the right purchase — the T53's wired-only spec is genuinely limiting for any desk that might ever need to relocate. We sell the T53W much more often than the T53.

Where to skip the T5 family entirely: if budget is the constraint and you do not specifically need the T5 aesthetic, the T42U is the cheaper twin with the same SIP capacity. The T53's added value is the chassis design, not the spec sheet.

Full technical specifications.

Display & user interface
Display3.7-inch 360×160 color TFT LCD
Line keys21 multi-page line keys with dual-color LEDs
Soft keys4 context-sensitive soft keys
Navigation5-way nav, dedicated function keys
VoIP & SIP
SIP accountsUp to 12 SIP accounts
ProtocolsSIP v2 (RFC 3261), TLS, SRTP, BLF/BLA, shared call appearance
CodecsOpus, G.722, G.711, G.729AB, G.726, iLBC
ProvisioningFTP/TFTP/HTTP/HTTPS, PnP, TR-069, RPS
Audio
HD voiceHD handset and HD speakerphone
SpeakerFull-duplex with AEC
HeadsetRJ9 + 2 × USB + EHS
Connectivity
EthernetDual 10/100/1000 Mbps gigabit
PoEIEEE 802.3af Class 2
USB2 × USB 2.0
ExpansionEXP43 sidecar supported
Power & physical
PowerPoE or 5V/2A adapter
DimensionsApproximately 225 × 196 × 41 mm
Wall mountYes
In the box
IncludedT53 handset, base, curl cord, ethernet cable, stand, provisioning card
Not includedPower adapter, USB devices, sidecar

How it works on voip.army.

Plug the T53 into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

12

SIP accounts on one phone

12 lines per phone. Each line key has a dual-color LED for status at a glance.

21

Programmable keys

21 multi-page mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

0

Per-device onboarding fees

Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

Yealink

Auto-provisioning template

Tested against every Yealink firmware release for T53. We catch regressions before they reach your fleet.

Need T53s for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
