What size room is the SoundStation IP 6000 designed for?

Medium-to-large — up to about ten people, roughly 10-foot microphone pickup range. For boardrooms or larger spaces, the IP 7000 with expansion microphones is the right pick; for small huddle rooms the IP 5000 is cheaper.

Is the SoundStation IP 6000 still supported on voip.army?

Yes — UCS firmware 4.0.15 on our legacy provisioning VLAN. Provisioning stays on an isolated network; SIP signaling and call audio are normal.

Does the SoundStation IP 6000 require special PoE?

It supports IEEE 802.3af Class 3 PoE or an optional 48V DC adapter. The audio path is bigger than a desk phone, so it draws more power than a typical Class 1/2 device. Most modern PoE switches handle Class 3 without trouble.

What's the modern equivalent?

The Poly Trio 8500 (similar pickup range, modern touch UI, USB/Bluetooth) or the Trio 8800 (larger pickup, supports expansion microphones, IEEE 802.3at PoE). Both run current UCS firmware on voip.army's main provisioning network.

Polycom · SoundStation IP · legacy conference

Polycom SoundStation IP 6000Still works. Still supported.

The SoundStation IP 6000 is the mid-tier IP conference phone in the SoundStation family — 10-foot microphone pickup range, HD voice via G.722, full-duplex speakerphone tuned for medium-to-large conference rooms. EOL'd 2018; still supported on voip.army for existing fleets.

Display

graphical LCD

SIP accounts

1 line

Ethernet

Dual 10/100

Type

SoundStation conference phone

EOL year

2018

Condition

Refurbished / pre-owned

$449 refurbished

or rent for $24.99/mo — month-to-month, return anytime

Pre-owned, tested, re-flashed for voip.army — 30-day return

Order a SoundStation IP 6000 Rent for $24.99/mo Datasheet (PDF) ↓

✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ 30-day return on refurbished

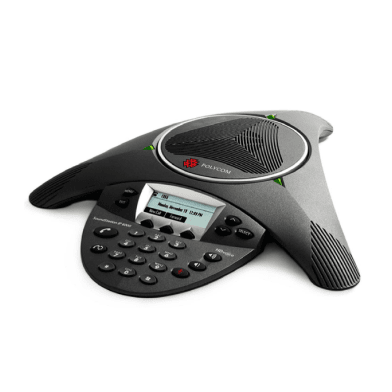

Polycom SoundStation IP 6000 VoIP phone — front view with handset and dialpad — Polycom SoundStation IP 6000

Why we still support the SoundStation IP 6000.

The SoundStation IP 6000 was the mid-tier conference phone in the SoundStation family — released 2007, EOL'd 2018. A 10-foot microphone pickup range, three high-fidelity speakers in the triangular chassis, and a wideband audio path that's still impressive for the era.

It's the right size for medium-to-large conference rooms — up to about ten people around a long table. For boardroom-scale rooms (12+) the IP 7000 supports expansion microphones; for small huddle rooms the IP 5000 is half the price and adequate.

For existing fleets, the IP 6000 onboards onto voip.army's legacy provisioning VLAN. For new orders the modern equivalent is the Poly Trio 8500 (touch interface, USB/Bluetooth pairing) or the Trio 8800 (larger room, IEEE 802.3at PoE, optional satellite mics).

Full technical specifications.

Display & user interface
Display	Backlit 248×68 pixel monochrome LCD
Line keys	1 line key with dual-color LEDs
Soft keys	Context-sensitive under the display
VoIP & SIP
SIP accounts	1
SIP protocols	SIP v2 (RFC 3261), supported on voip.army's legacy provisioning VLAN with UCS firmware 4.0.15
Codecs	G.711, G.722, G.722.1, G.729AB, G.726, iLBC, Siren 14
Audio
Speaker	Full-duplex with Polycom Acoustic Clarity
HD voice	G.722 wideband on handset/speaker
Headset	Speakerphone only / not applicable
Connectivity
Ethernet	Dual 10/100 Mbps
PoE	IEEE 802.3af Class 2
Power & physical
Power source	PoE 802.3af Class 2 (preferred) or Polycom power adapter (sold separately)
Weight	1.81 kg
Dimensions	300 × 300 × 80 mm (triangular)
Wall-mountable	Yes
Lifecycle status
EOL year	2018
Firmware on voip.army	Polycom UCS 4.0.15 (legacy provisioning VLAN)
voip.army stock	Refurbished / pre-owned, tested and re-flashed

How it works on voip.army.

The SoundStation IP 6000 runs Polycom UCS firmware 4.0.15 — the last release that supports this hardware. It onboards onto voip.army the same way as any current phone, just on our legacy provisioning VLAN because the phone's TLS stack predates modern web standards. Call quality is normal SRTP.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal internet connection.

SIP accounts on one phone

Run up to 1 simultaneous SIP registration. Each line key has a dual-color LED for status.

Per-device onboarding fees

Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.

4.0.15

UCS firmware version

Last firmware Polycom shipped for this phone (2018). Still works perfectly on voip.army; provisions over our isolated legacy VLAN because the phone can't speak TLS 1.2.

100m

Ethernet to the workstation

PC pass-through port on the back lets you daisy-chain a single ethernet drop to phone and computer.

802.3af

PoE class

Class 2. Any 802.3af-compliant switch from the last 15 years will power it without issue.

Onboarding a fleet of SoundStation IP 6000s?

Send us a CSV of MAC addresses. We add them to the provisioning server, you factory-reset and plug in, they pick up their voip.army config within a minute.

Get a quote Start a free trial first

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Refurbished, tested, re-flashed
