How does the GXP1760 differ from the GXP1780?

The GXP1780 has 8 SIP accounts (vs 6) and 8 line keys (vs 6). Same screen, same audio, same connectivity. About $20 more.

Does it support Opus?

Yes. Unlike the GXP1600 family, the GXP1700 family supports the Opus codec out of the box.

Does it have a sidecar option?

No. The GXP1760 does not support a sidecar / expansion module. For more BLF keys, step up to the GRP2615 with GBX20 support, or use the GXP2130/2135/2140 which support the GXP-series sidecar.

Will it auto-provision on voip.army?

Yes. Same XML provisioning as the rest of our Grandstream catalog.

Grandstream · GXP series · legacy mid

Grandstream GXP1760Six lines, color screen, six BLF keys.

Six SIP accounts, six dual-color line keys, a 200×80 color LCD, dual gigabit ethernet, PoE class 2, and four XML soft keys. The GXP1760 is the entry point of the GXP1700 family — color screen and six lines without crossing into $130+ territory.

Display

200×80 color LCD

SIP accounts

6 lines

Programmable keys

6 dual-color line keys

Ethernet

Dual gigabit · PoE class 2

Audio

HD voice · full-duplex

Power

PoE preferred

$109 one-time

or rent for $11.99/mo — month-to-month, return anytime

Ships pre-configured · free next-business-day for orders $200+

Order a GXP1760 Rent for $11.99/mo Datasheet (PDF) ↓

✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

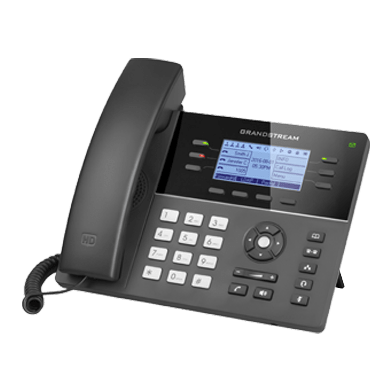

Grandstream GXP1760 voip desk phone — front view with handset and display — Grandstream GXP1760

Why the GXP1760 is on the catalog.

The GXP1760 is the entry of the GXP1700 family — Grandstream's pre-GRP mid-tier line that introduced color screens and 6-line SIP capability at sub-$120 pricing. Six SIP accounts is plenty for most desks (main + DID + after-hours + hunt-group + personal + spare), and the six dual-color line keys can be reassigned for BLF as needed.

Color screen aside, this is a workmanlike mid-tier phone. Dual gigabit so your PC daisy-chains at full speed, PoE class 2 so you skip the wall wart, EHS-compatible (via adapter) for wireless headsets. No USB, no Bluetooth, no built-in Wi-Fi. The screen is 200×80 — wider than tall, which makes it good for caller ID and the soft-key row but cramped for browsing long contact lists.

Modern equivalents: the GRP2614 (16 lines, 4.3-inch screen, Wi-Fi + Bluetooth built in, USB, GBX20 sidecar support, ~$30 more) is a substantial step up. For new deployments the GRP2614 is the much better buy. The GXP1760 is appropriate for extending existing GXP1760 fleets or when 6 lines specifically is the spec (some hospitality and small-office deployments standardize on exactly 6-line phones).

Full technical specifications.

Display & user interface
Display	200×80 color LCD
Line keys	6 dual-color (red/green) BLF-capable line keys
Soft keys	4 XML soft keys
Navigation	5-way navigation cluster
VoIP & SIP
SIP accounts	6 SIP accounts, 6 lines
Protocols	SIP RFC3261, NAT (STUN), TLS, SRTP, BLF, SCA
Codecs	Opus, G.722, G.711a/u, G.726, G.729A/B, iLBC
Provisioning	TR-069, XML, GDMS
Audio
HD voice	HD handset, HD speaker
Headset	RJ9 wired, EHS via adapter
Connectivity
Ethernet	Dual 10/100/1000 Mbps gigabit
PoE	IEEE 802.3af Class 2
Wi-Fi / Bluetooth	Not supported
Physical
Dimensions	210 × 175 × 75 mm
Weight	Approximately 0.85 kg
In the box (from voip.army)
Included	GXP1760 handset, base, curl cord, ethernet cable, stand, provisioning card
Not included	Power adapter (PoE preferred), EHS adapter if needed

How it works on voip.army.

Plug the GXP1760 into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

SIP accounts on one phone

6 lines per phone. Each line key has a dual-color LED for status at a glance.

Programmable keys

6 dual-color line keys mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

Per-device onboarding fees

Bringing your own? Send the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

GDMS

Grandstream Device Management

Provisioning template tested against every Grandstream firmware release for GXP1760. We catch regressions before they reach your fleet.

Need GXP1760s for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

Get a quote Start a free trial first

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
