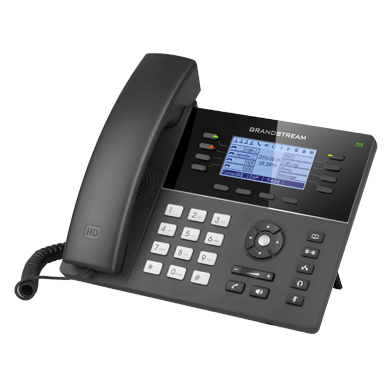

Eight SIP accounts, eight dual-color line keys, a 200×80 color LCD, dual gigabit ethernet, PoE class 2, four XML soft keys. The GXP1780 is the GXP1760 with two more lines and two more keys — the natural fit for an admin or executive-assistant desk.
The GXP1780 is the GXP1760's bigger sibling — eight SIP accounts instead of six, eight dual-color line keys instead of six. Everything else (screen, codecs, ethernet, PoE, audio path) is identical. The two extra lines are useful for admin desks that need to monitor a CEO line, a CFO line, a main line, a hunt-group line, an after-hours line — basically any role that runs more than four lines simultaneously without wanting a full receptionist-class console.
It is also the largest line-count phone in Grandstream's mid-tier catalog that does not have USB or sidecar support. If you need more than 8 BLF keys you have to step up to a different generation (GXP2130 with GXP sidecar, or GRP2615 with GBX20). For deployments that need exactly 8 lines on a clean, no-frills phone, this is the one.
Modern equivalent: the GRP2614 (16 lines, 4.3-inch screen, Wi-Fi + Bluetooth, USB, GBX20 expansion, ~$10 more) is the obvious next-generation pick. For new deployments, the GRP2614 is almost always the better buy. The GXP1780 is the right pick for extending existing GXP1780 fleets or for environments that specifically need monochrome color (no color screen) for some industrial requirement.
| Display & user interface | |
| Display | 200×80 color LCD |
| Line keys | 8 dual-color BLF-capable line keys |
| Soft keys | 4 XML soft keys |
| VoIP & SIP | |
| SIP accounts | 8 SIP accounts, 8 lines |
| Protocols | SIP RFC3261, NAT (STUN), TLS, SRTP, BLF, SCA |
| Codecs | Opus, G.722, G.711a/u, G.726, G.729A/B, iLBC |
| Provisioning | TR-069, XML, GDMS |
| Audio | |
| HD voice | HD handset, HD speaker |
| Headset | RJ9 wired, EHS via adapter |
| Connectivity | |
| Ethernet | Dual 10/100/1000 Mbps gigabit |
| PoE | IEEE 802.3af Class 2 |
| Wi-Fi / Bluetooth | Not supported |
| Physical | |
| Dimensions | 210 × 180 × 75 mm |
| Weight | Approximately 0.9 kg |
| In the box (from voip.army) | |
| Included | GXP1780 handset, base, curl cord, ethernet cable, stand, provisioning card |
| Not included | Power adapter (PoE preferred), EHS adapter if needed |
Plug the GXP1780 into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.
Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.
8 lines per phone. Each line key has a dual-color LED for status at a glance.
8 dual-color line keys mapped from the voip.army portal — BLF, paging, parking, transfer destinations.
Bringing your own? Send the MAC, factory-reset, plug in. No charge to add it to the fleet.
Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.
Provisioning template tested against every Grandstream firmware release for GXP1780. We catch regressions before they reach your fleet.
Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.
