How is the GXP1630 different from the GXP1628?

Bigger 320×240 graphical screen (vs 132×64 segment LCD), 3 SIP accounts (vs 2). Same 8 dual-color line keys. About $10 more — usually worth it.

Does the GXP1630 support EHS for wireless headsets?

Yes, with a separate Grandstream EHS adapter (about $30). Compatible with Plantronics and Jabra wireless headsets using standard EHS cables.

Can it use a USB headset?

No. No USB port on this model. Wired RJ9 or EHS-adapted wireless only.

How does it compare to the modern GRP2613?

The GRP2613 (~$130) has a color screen, USB port, 24 multi-page programmable keys, and modern silicon. About $40 more, but a meaningful step up for new deployments. The GXP1630 is the right pick for extending existing fleets.

Grandstream · GXP series · legacy mid

Grandstream GXP1630Three lines, eight keys, graphical LCD.

Three SIP accounts, eight dual-color line keys, a 320×240 graphical LCD, dual gigabit, PoE class 2, four XML soft keys. The GXP1630 is the top of the GXP1600 family — three lines and a real graphical screen for under $100.

Display

2.98″ graphical LCD · 320×240

SIP accounts

3 lines

Programmable keys

8 dual-color line keys

Ethernet

Dual gigabit · PoE class 2

Audio

HD voice · full-duplex

Power

PoE preferred

$89 one-time

or rent for $7.99/mo — month-to-month, return anytime

Ships pre-configured · free next-business-day for orders $200+

Order a GXP1630 Rent for $7.99/mo Datasheet (PDF) ↓

✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

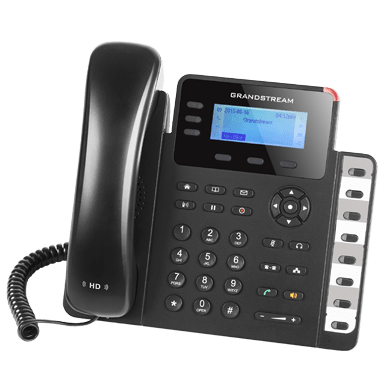

Grandstream GXP1630 voip desk phone — front view with handset and display — Grandstream GXP1630

Why the GXP1630 is on the catalog.

The GXP1630 is the top of the GXP1600 family. Bigger screen than the GXP1628 (320×240 graphical LCD vs 132×64 segment LCD), a third SIP account, same eight dual-color line keys for BLF. The screen upgrade is meaningful — full-page caller ID with photo, readable menus, browsable directory.

Where it sits in the catalog: between the GXP1628 (entry-mid) and the GXP1760 (5 lines, color screen). It is a phone for desks where you need 3 lines, real BLF capacity, but you do not need a color screen or USB. Common in small-office reception roles where the phone has been on the desk for 5+ years and replacement-with-equivalent is the priority.

Modern equivalents: the GRP2613 (3 lines, 24 multi-page programmable keys, USB, gigabit, color screen, ~$40 more) is the modern next-generation phone. For new deployments the GRP2613 is the much smarter buy; the GXP1630 is the right pick for extending existing fleets, or where budget constraints make the $40 difference real.

Full technical specifications.

Display & user interface
Display	2.98-inch 320×240 graphical LCD (backlit, monochrome)
Line keys	8 dual-color (red/green) BLF-capable line keys
Soft keys	4 XML soft keys
Navigation	5-way navigation cluster, dedicated hold / transfer / mute / message
VoIP & SIP
SIP accounts	3 SIP accounts, 3 lines (5 free keys for BLF)
Protocols	SIP RFC3261, NAT (STUN), TLS, SRTP, BLF, SCA
Codecs	G.722, G.711a/u, G.726, G.729A/B, iLBC
Provisioning	TR-069, XML, GDMS
Audio
HD voice	HD handset, HD speaker
Headset	RJ9 wired, EHS via Plantronics adapter (sold separately)
Connectivity
Ethernet	Dual 10/100/1000 Mbps gigabit
PoE	IEEE 802.3af Class 2
Wi-Fi / Bluetooth	Not supported
Physical
Dimensions	210 × 175 × 75 mm
Weight	Approximately 0.85 kg
In the box (from voip.army)
Included	GXP1630 handset, base, curl cord, ethernet cable, stand, provisioning card
Not included	Power adapter (PoE preferred), EHS adapter if needed

How it works on voip.army.

Plug the GXP1630 into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

SIP accounts on one phone

3 lines per phone. Each line key has a dual-color LED for status at a glance.

Programmable keys

8 dual-color line keys mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

Per-device onboarding fees

Bringing your own? Send the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

GDMS

Grandstream Device Management

Provisioning template tested against every Grandstream firmware release for GXP1630. We catch regressions before they reach your fleet.

Need GXP1630s for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

Get a quote Start a free trial first

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
