Grandstream · GXP series · legacy mid

Grandstream GXP1628Eight line keys, real BLF on a budget.

Two SIP accounts, eight dual-color line keys, a 132×64 backlit LCD, dual gigabit ethernet, PoE class 2, four XML soft keys. The GXP1628 is the GXP entry tier with the line-key count finally bumped up — eight keys means real BLF capability for the first time in this price range.

Display
132×64 backlit LCD
SIP accounts
2 lines
Programmable keys
8 dual-color line keys
Ethernet
Dual gigabit · PoE class 2
Audio
HD voice · full-duplex
Power
PoE preferred
$79 one-time
or rent for $7.99/mo — month-to-month, return anytime
Ships pre-configured · free next-business-day for orders $200+
✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

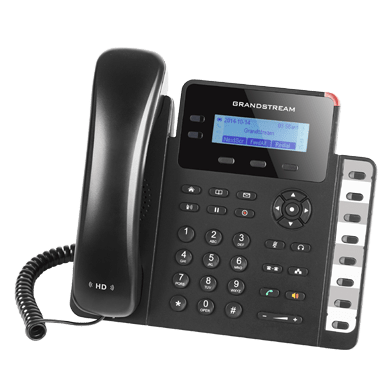

Grandstream GXP1628 voip desk phone — front view with handset and display
Grandstream GXP1628

Why the GXP1628 is on the catalog.

The GXP1628 takes the entry-tier GXP chassis and bumps the line-key count from 2 to 8 — which is the difference between a basic two-line phone and a phone that can actually monitor coworkers. With 2 SIP lines occupying two of the keys, you still have six free for BLF, park, paging, or speed-dial.

It also adds gigabit ethernet (the GXP1610-1625 family is all 10/100), which matters more than it sounds: a daisy-chained PC behind the phone is no longer throttled to 100 Mbps, so file transfers and video calls do not get slowed down by the phone in the loop. For any deployment where the desk computer plugs into the phone pass-through (very common in older offices), gigabit ethernet here is meaningful.

Modern equivalents: the GRP2604 (4 SIP lines, 10 dual-color keys, gigabit, color screen, ~$10 more) is the next-generation phone in this niche. For new deployments we recommend the GRP2604. The GXP1628 is the right pick for extending existing GXP1628 fleets or for deployments where you want a monochrome LCD specifically (some industrial or low-power-consumption deployments still prefer monochrome).

Full technical specifications.

Display & user interface
Display132×64 backlit graphical LCD
Line keys8 dual-color (red/green) BLF-capable line keys
Soft keys4 XML soft keys
VoIP & SIP
SIP accounts2 SIP accounts, 2 lines (6 free keys for BLF)
ProtocolsSIP RFC3261, NAT (STUN), TLS, SRTP, BLF, SCA
CodecsG.722, G.711a/u, G.726, G.729A/B, iLBC
ProvisioningTR-069, XML, GDMS
Audio
HD voiceHD handset, HD speaker
HeadsetRJ9 wired
Connectivity
EthernetDual 10/100/1000 Mbps gigabit (LAN + PC pass-through)
PoEIEEE 802.3af Class 2
Wi-Fi / BluetoothNot supported
Physical
Dimensions210 × 175 × 75 mm
WeightApproximately 0.8 kg
In the box (from voip.army)
IncludedGXP1628 handset, base, curl cord, ethernet cable, stand, provisioning card
Not includedPower adapter (PoE preferred)

How it works on voip.army.

Plug the GXP1628 into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

2

SIP accounts on one phone

2 lines per phone. Each line key has a dual-color LED for status at a glance.

8

Programmable keys

8 dual-color line keys mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

0

Per-device onboarding fees

Bringing your own? Send the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

GDMS

Grandstream Device Management

Provisioning template tested against every Grandstream firmware release for GXP1628. We catch regressions before they reach your fleet.

Need GXP1628s for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
