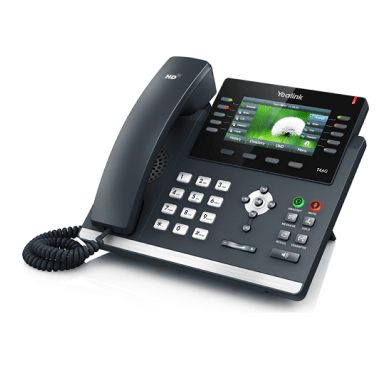

Sixteen SIP accounts, a 7-inch 800×480 color non-touch screen, dual gigabit ethernet with PoE, single USB port, EHS support. The T48G is the T48 family's non-touch original — a phone that paid for itself in conference rooms and executive offices by sheer visual presence.
The T48G is the original T48 chassis: 7-inch high-resolution color screen, 16 SIP lines, 16 programmable keys, USB headset support. The screen alone is the selling point — at 800×480, it shows full caller ID, line status for 16 SIP registrations, and a multi-line call log all at once. For executive desks where the phone is part of the room's visual statement, the size matters.
What it is not: a touchscreen. The T48S and T48U variants added touch capability for $30-50 more. The T48G is the budget version of the 7-inch chassis — you navigate with the 5-way physical pad and soft keys instead of tapping. For executives who actually preferred physical keys (and there are more of them than you might think), the T48G is the right pick.
Where to spend more: the T48S adds a touchscreen for $30, and the T48U adds dual USB plus the touchscreen for $50. For modern deployments touchscreen is generally expected on a phone in this price tier — the T48G's non-touch screen feels dated even though the panel quality is the same. The T48G earns its spot in the catalog mostly through fleet matching and price-conscious executive-desk replacements.
| Display & user interface | |
| Display | 7-inch 800×480 color TFT LCD (non-touch) |
| Line keys | 16 line keys with dual-color LEDs (multi-page) |
| Soft keys | 4 context-sensitive soft keys |
| Navigation | 5-way nav, dedicated function keys |
| VoIP & SIP | |
| SIP accounts | Up to 16 SIP accounts |
| Protocols | SIP v2 (RFC 3261), TLS, SRTP, BLF/BLA |
| Codecs | Opus, G.722, G.711, G.723.1, G.729AB, G.726, iLBC |
| Provisioning | FTP/TFTP/HTTP/HTTPS, PnP, TR-069, RPS |
| Audio | |
| HD voice | HD handset and HD speakerphone |
| Speaker | Full-duplex with AEC |
| Headset | RJ9 + USB + EHS |
| Connectivity | |
| Ethernet | Dual 10/100/1000 Mbps gigabit |
| PoE | IEEE 802.3af Class 3 |
| USB | 1 × USB 2.0 |
| Expansion | EXP40 sidecar |
| Power & physical | |
| Power | PoE or 5V/2A adapter |
| Dimensions | Approximately 266 × 211 × 41 mm |
| Wall mount | Yes |
| In the box | |
| Included | T48G handset, base, curl cord, ethernet cable, stand, provisioning card |
| Not included | Power adapter (PoE preferred), USB headset, sidecar |
Plug the T48G into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.
Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.
16 lines per phone. Each line key has a dual-color LED for status at a glance.
16 line + multi-page mapped from the voip.army portal — BLF, paging, parking, transfer destinations.
Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.
Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.
Tested against every Yealink firmware release for T48G. We catch regressions before they reach your fleet.
Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.
