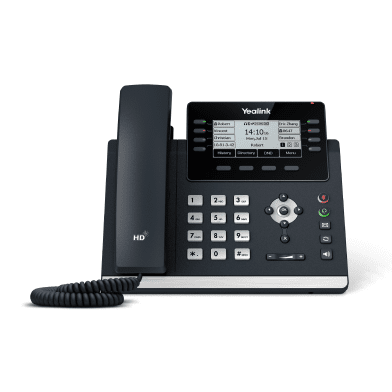

Twelve SIP accounts, a 3.7-inch 360×160 color TFT screen, dual gigabit ethernet with PoE, dual USB ports, EHS support. The T43U is the color-screen version of the T42U — slightly smaller chassis than the T46U, slightly fewer SIP lines, $10 less.
The T43U fills a specific gap in the T4U lineup: between the T42U (mono, 12 lines, $179) and the T46U (color 4.3-inch, 16 lines, $229). It gives you the color screen of the T46U but in a slightly smaller form factor with the 12-line cap of the T42 series. For desks where the 4.3-inch screen would feel oversized, the 3.7-inch color panel here strikes a better balance.
Where it matters: tight desk space, particularly in cubicle environments where every square inch counts, or for reception counters where the phone shares the counter with a monitor and keyboard. The smaller footprint feels less imposing. The 360×160 color resolution is plenty for caller ID, full directory browsing, and a multi-page BLF view.
Where to upgrade: if you want the bigger 4.3-inch screen and 16 SIP lines, jump to the T46U for $30 more — that is the chassis we sell most often. If you want built-in Wi-Fi instead of having to add a WF40 dongle, the T44W is the next step up at $30 more. The T43U is the right pick when you specifically want color but in a smaller body.
| Display & user interface | |
| Display | 3.7-inch 360×160 color TFT LCD |
| Line keys | 10 multi-page line keys with dual-color LEDs |
| Soft keys | 4 context-sensitive soft keys |
| Navigation | 5-way nav, dedicated function keys |
| VoIP & SIP | |
| SIP accounts | Up to 12 SIP accounts |
| Protocols | SIP v2 (RFC 3261), TLS, SRTP, BLF/BLA |
| Codecs | Opus, G.722, G.711, G.729AB, G.726, iLBC |
| Provisioning | FTP/TFTP/HTTP/HTTPS, PnP, TR-069, RPS |
| Audio | |
| HD voice | HD handset and HD speakerphone |
| Speaker | Full-duplex with AEC |
| Headset | RJ9 + 2 × USB + EHS |
| Connectivity | |
| Ethernet | Dual 10/100/1000 Mbps gigabit |
| PoE | IEEE 802.3af Class 2 |
| USB | 2 × USB 2.0 |
| Expansion | EXP43 sidecar supported |
| Power & physical | |
| Power | PoE or 5V/2A adapter |
| Dimensions | Approximately 220 × 215 × 41 mm |
| Wall mount | Yes |
| In the box | |
| Included | T43U handset, base, curl cord, ethernet cable, stand, provisioning card |
| Not included | Power adapter, USB devices, sidecar |
Plug the T43U into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.
Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.
12 lines per phone. Each line key has a dual-color LED for status at a glance.
10 line + multi-page mapped from the voip.army portal — BLF, paging, parking, transfer destinations.
Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.
Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.
Tested against every Yealink firmware release for T43U. We catch regressions before they reach your fleet.
Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.
