Yealink · T2 series · 3-line 100M

Yealink T23PThe T23G without the gigabit chip.

Three SIP accounts, a 2.8-inch backlit monochrome screen, dual 10/100 ethernet with PoE, six dual-color programmable keys. The T23P is the T23G with 100M ports instead of gigabit — same chassis, same screen, same firmware, $10 less.

Display
2.8″ backlit · 132×64 mono
SIP accounts
3 lines
Programmable keys
6 total · BLF-capable
Ethernet
Dual 10/100 · PoE class 1
Audio
HD voice · full-duplex speaker
Power
PoE or 5V adapter
$79 one-time
or rent for $7.99/mo — month-to-month, return anytime
Ships pre-configured · free next-business-day for orders $200+
✓ Auto-provisioned out of the box ✓ Warranty replacement included with rental ✓ Free shipping on orders $200+

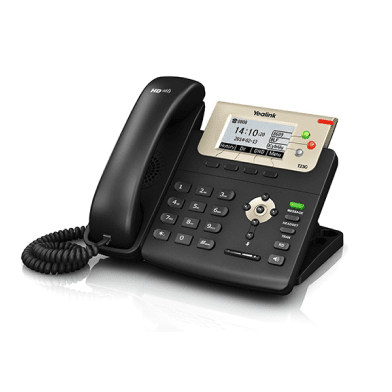

Yealink T23P voip desk phone — front view with handset and display
Yealink T23P

Why the T23P is on the catalog.

The T23P is a legitimately confusing SKU because it overlaps almost completely with the T23G — same body, same screen, same six programmable keys, same Opus codec. The only meaningful difference is ethernet speed: 10/100 here instead of gigabit. Yealink kept it in the catalog for budget-constrained bulk deployments where every $10 multiplied across 100 desks matters more than the daisy-chain throughput.

Where it makes sense: pure-phone deployments with no PCs daisy-chained through the phone, or sites where the building is wired with 100M unmanaged switches that would throttle a gigabit phone anyway. Call centers with thin clients on a separate VLAN are the textbook fit — the phone never sees PC traffic, the gigabit chip would be wasted.

Where to skip it: any office where users plug their workstations into the back of the phone. In that case the 100M port becomes a real bottleneck on file transfers, video calls, and anything else the PC actually needs the network for. Spend the $10 and get the T23G instead.

Full technical specifications.

Display & user interface
Display2.8-inch 132×64 backlit graphical LCD
Line keys3 line keys with dual-color LEDs
BLF keys3 additional programmable BLF keys
Soft keys4 context-sensitive soft keys
Navigation5-way navigation, dedicated function keys
VoIP & SIP
SIP accountsUp to 3 SIP accounts
ProtocolsSIP RFC 3261, TLS, SRTP, BLF/BLA
CodecsOpus, G.722, G.711, G.729AB, G.726, iLBC
ProvisioningFTP/TFTP/HTTP/HTTPS, PnP, TR-069
Audio
HD voiceHD handset and speakerphone
SpeakerFull-duplex hands-free with AEC
HeadsetRJ9 port
Connectivity
EthernetDual 10/100 Mbps
PoEIEEE 802.3af Class 1
Wi-Fi / BluetoothNot supported
Power & physical
PowerPoE or external 5V adapter
DimensionsApproximately 211 × 207 × 39 mm
Wall mountYes
In the box
IncludedT23P handset, base, curl cord, ethernet cable, stand, provisioning card
Not includedPower adapter (PoE preferred)

How it works on voip.army.

Plug the T23P into PoE and ethernet. About a minute later it has registered to your extension. Same auto-provisioning flow as every other supported phone — no SIP credentials to type, no firmware to chase.

60s

Time from plug-in to first call

Boot, fetch config from our provisioning server, register, ready. About one minute on a normal connection.

3

SIP accounts on one phone

3 lines per phone. Each line key has a dual-color LED for status at a glance.

6

Programmable keys

6 total · BLF-capable mapped from the voip.army portal — BLF, paging, parking, transfer destinations.

0

Per-device onboarding fees

Bringing your own? Send us the MAC, factory-reset, plug in. No charge to add it to the fleet.

802.3af

PoE class

Standard PoE — any 802.3af-compliant switch from the last 15 years powers the phone without an adapter.

Yealink

Auto-provisioning template

Tested against every Yealink firmware release for T23P. We catch regressions before they reach your fleet.

Need T23Ps for every desk?

Tell us how many you need and what extensions to map. We ship pre-configured next business day; you plug them in and they work.

✓ Free shipping on orders $200+ ✓ 30-day hardware return ✓ Pre-configured before shipping
